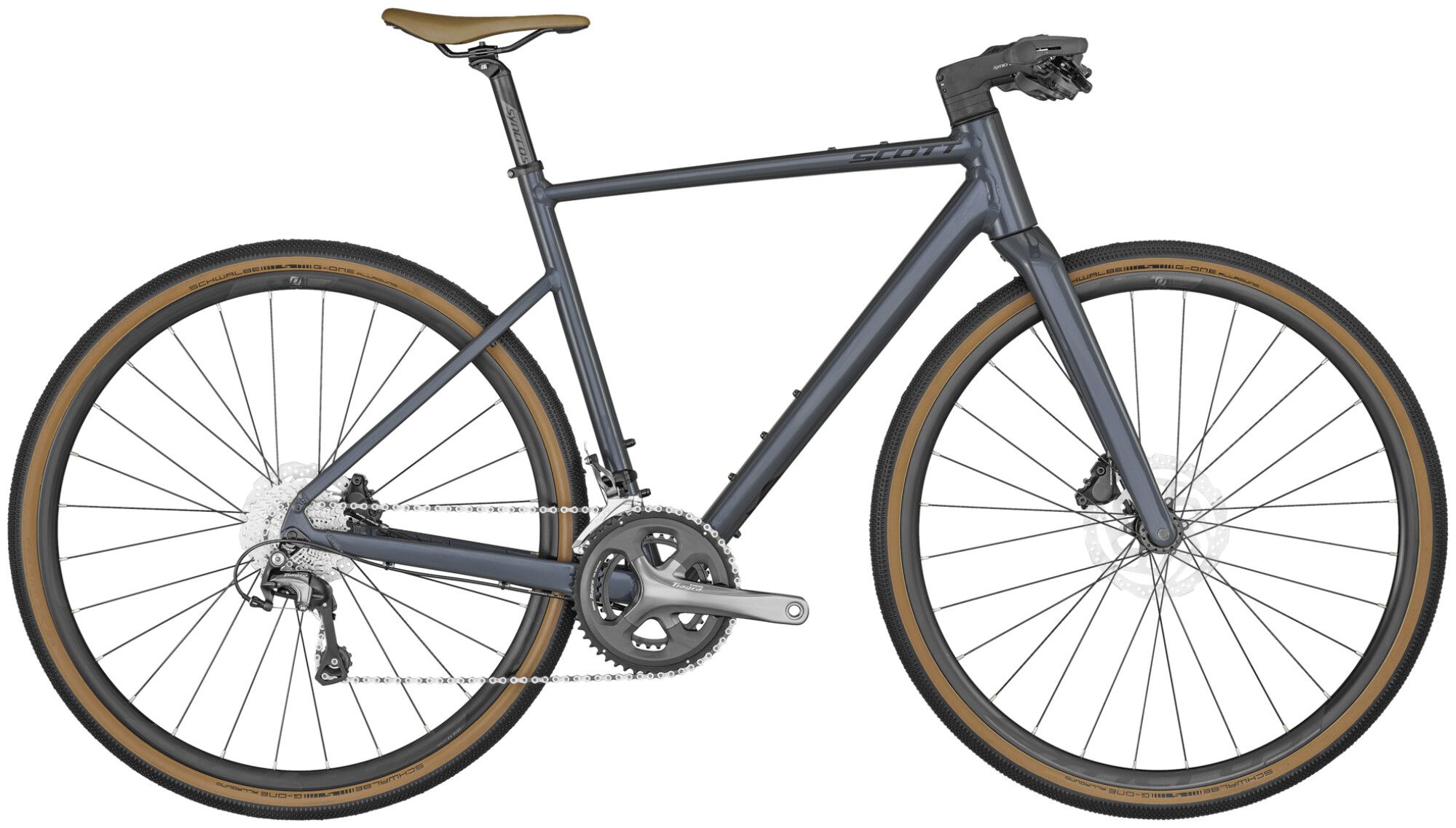

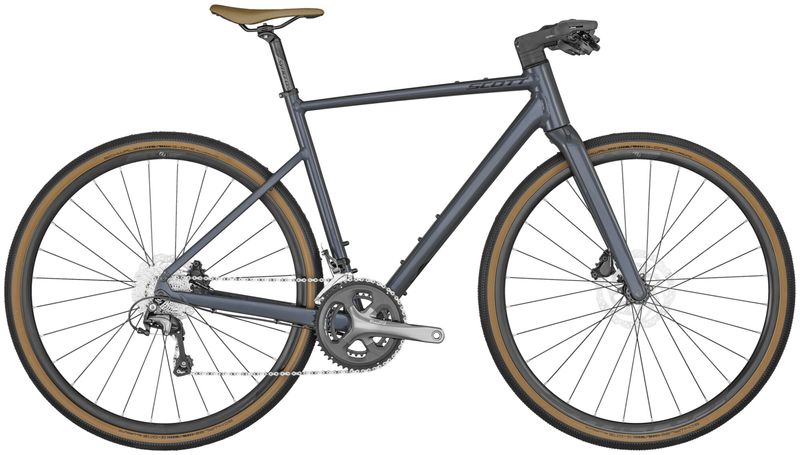

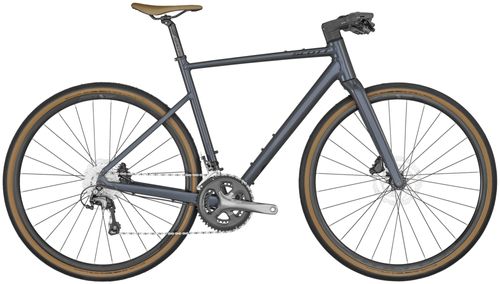

Scott Metrix 20 2023 | 28 Zoll | Diamant

Farbe
Rahmengröße
ab 1.199,00 €
13 Angebote von 4 Händlern
Scott Metrix 20 Diamant storm grey 28" - XL 2024
Storm GreyRahmengröße: XL58
3 - 4 Tage
Logo
1.199,00 €
ab 70,00 € Versand
Scott Metrix 20 Diamant storm grey 28" - S 2024
Storm GreyRahmengröße: S52
3 - 4 Tage
Logo
1.398,99 €
ab 79,00 € Versand
Scott Metrix 20 Storm Grey 2023 28" Diamant
Storm GreyRahmengröße: S52
3 - 5 Tage
Logo
1.398,99 €
ab 69,00 € Versand
Scott Metrix 20 - 28 Zoll 20K Diamant - Storm Grey
Storm GreyRahmengröße: XXL61
Keine Angaben
Logo
1.399,00 €
ab 24,95 € Versand
Scott Metrix 20 - 28 Zoll 20K Diamant - Storm Grey
Storm GreyRahmengröße: XXL61
Keine Angaben
Logo
1.399,00 €
ab 24,95 € Versand
Scott Metrix 20 - 28 Zoll 20K Diamant - Storm Grey
Storm GreyRahmengröße: S52
Keine Angaben
Logo
1.399,00 €
ab 24,95 € Versand
Scott Metrix 20 - 28 Zoll 20K Diamant - Storm Grey
Storm GreyRahmengröße: S52
Keine Angaben
Logo
1.399,00 €
ab 24,95 € Versand
Scott Metrix 20 Diamant storm grey 28" - L 2024
Storm GreyRahmengröße: L56
3 - 4 Tage
Logo
1.399,00 €
ab 65,00 € Versand
Scott Metrix 20 Storm Grey 2023 28" Diamant
Storm GreyRahmengröße: XL58
3 - 5 Tage
Logo
1.399,00 €
ab 69,00 € Versand
Scott Metrix 20 Diamant storm grey 28" - M 2024
Storm GreyRahmengröße: M54
3 - 4 Tage
Logo
1.399,00 €
ab 70,00 € Versand
Scott Metrix 20 - 28 Zoll 20K Diamant - Storm Grey
Storm GreyRahmengröße: XS49
Keine Angaben
Logo
1.399,00 €
ab 24,95 € Versand
Scott Metrix 20 - 28 Zoll 20K Diamant - Storm Grey
Storm GreyRahmengröße: XS49
Keine Angaben
Logo
1.399,00 €
ab 24,95 € Versand
Scott Metrix 20 Storm Grey 2023 28" Diamant
Storm GreyRahmengröße: M54
3 - 5 Tage
Logo
1.498,99 €
ab 69,00 € Versand

"Zum Shop" Schaltflächen, die mit einer ¹ markiert sind, führen zu Online-Shops von Pedali Kooperationspartnern. Wenn darüber ein Kauf getätigt wird, erhält Pedali eine kleine Provision. Zum Vorteil der Käufer erhöht sich Kaufpreis für das Produkt dadurch nicht.

BeschreibungScott Metrix 20 2023 | 28 Zoll | Diamant

Scott Metrix 20
Scott - Logo
Scott hat sich von seinen bescheidenen Anfängen bis hin zu einem weltweit anerkannten Namen in der Fahrradbranche hochgearbeitet, bekannt für die Entwicklung wegweisender Technologien und die Produktion…
Mehr lesen

ÜberblickScott Metrix 20 2023 | 28 Zoll | Diamant

Icon Material

Material

Aluminium
Icon Schaltung

Schaltung

Kettenschaltung
Icon Einsatzbereich

Einsatzbereich

Straße, Feld-/Waldwege

AusstattungScott Metrix 20 2023 | 28 Zoll | Diamant

Basisdaten
  • Schalthebel
    Shimano SL-4700
  • Innenlager
    FSA BB-4000
  • Zulässiges Gesamtgewicht (kg)
    120
  • Gewicht (kg)
    10,40
  • Anzahl Gänge
    20
  • Gabeleinbauhöhe (mm)
    399
  • Körpergröße Min.
    195, 165, 175, 185, 170, 160
  • Körpergrösse Max
    205, 175, 185, 195, 180, 170
  • Farbe
    Storm Grey
  • Größe
    Diamant 28" XXL61, Diamant 28" S52, Diamant 28" L56, Diamant 28" XL58, Diamant 28" M54, Diamant 28" XS49
  • Rahmengröße
    XXL61, S52, L56, XL58, M54, XS49
Rahmen & Geometrie
  • Rahmen
    Metrix Disc / 6061 D.Butted Alloy, Endurance geometry Replaceable Derailleur Hanger, Syncros fender kit ready
  • Reach (mm)
    403, 382, 392, 396, 387, 378
  • Stack (mm)
    627, 547, 589, 608, 570, 528
  • Sitzrohrlänge (mm)
    610, 520, 560, 580, 540, 490
  • Oberrohrlänge (mm)
    594, 537, 571, 581, 557, 523
  • Steuerrohrwinkel (Grad)
    71, 70
  • Sitzrohrwinkel (Grad)
    73, 74, 75
  • Kettenstrebenlänge (mm)
    439, 435
  • Steuerrohrlänge (mm)
    203, 123, 163, 183, 143, 103
  • Tretlagerabsenkung (mm)
    71
  • Überstandshöhe (mm)
    869, 786, 825, 844, 806, 762
  • Radstand (mm)
    1071, 1038, 1056, 1067, 1045, 1027
  • Tretlagerhöhe (mm)
    283
Antrieb/Antriebsstrang
  • Schaltung
    Shimano Tiagra RD-4700-GS, 20 Speed
  • Umwerfer
    Shimano Tiagra FD-4700
  • Kurbelsatz
    FSA CK-4003ST/WT, 50x34 T
  • Zahnkranz
    Shimano CS-HG500, 10 Speed 11-32 T
  • Antrieb
    KMC X10
Cockpit
  • Lenker
    Syncros Flat-Bar FL2.0 620mm
  • Vorbau
    Syncros RR2.5, 1 1/4" / four Bolt 31.8mm
  • Steuersatz
    Acros AIF-1113
  • Lenker Breite (mm)
    620
Fahrwerk
  • Gabel
    Metrix HMF Disc, 1 1/4"-1 1/2" Eccentric Carbon steerer
Räder
  • Felge vorne
    Syncros Race 24 Disc, 28 Front / 28 Rear
  • Felge hinten
    Syncros Race 24 Disc, 28 Front / 28 Rear
  • Reifen vorne
    Schwalbe G-One Allround, 700x40C
  • Reifen hinten
    Schwalbe G-One Allround, 700x40C
  • Nabe vorne
    Formula Team II CL Disc 28 H
  • Nabe hinten
    Formula Team II CL Disc 28 H
Bremsanlage
  • Bremse vorne
    Shimano BR-UR300 Hyd.Disc
  • Bremse hinten
    Shimano BR-UR300 Hyd.Disc
  • Bremshebel Vorderrad
    Shimano BL-MT201
  • Bremshebel Hinterrad
    Shimano BL-MT201
  • Bremsscheibe vorne
    Shimano SM-RT10 CL 180 mm
  • Bremsscheibe hinten
    Shimano SM-RT10 CL 160 mm
Sattel
  • Sattel
    Syncros Tofino Regular 2.5
  • Sattelstütze
    Syncros RR2.5 27.2/300mm
